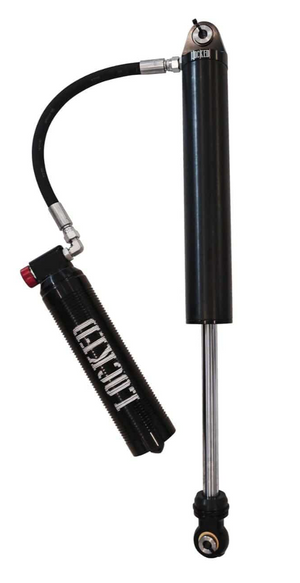

2.0" Diameter Body
2" Stroke: Extended 11.75" | Collapsed 9.75"
4" Stroke: Extended 14.75" | Collapsed 10.75"
1.26" diameter shafts – Hard-chromed and mirror-polished for rust prevention and extended seal life
Schrader cap mounts directly to the body, not the valve, for a stronger, cleaner seal
O-ring travel indicator shows real-time shaft travel
Delrin contact pad uses a flushmount design for silent performance and no metal-on-metal contact

1-Year Warranty on non-wearable part

Intended for off-highway use only.
