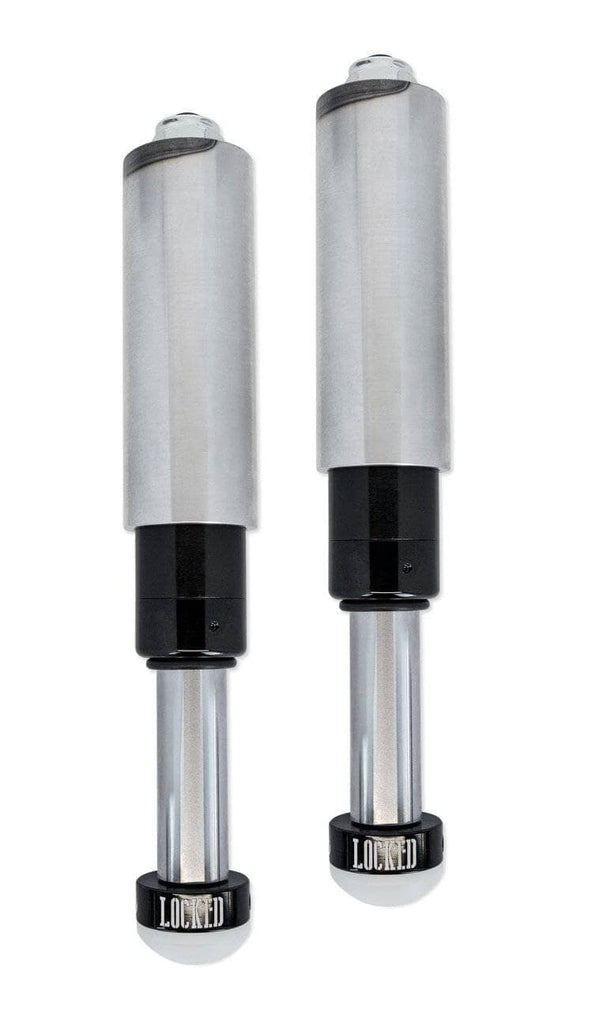

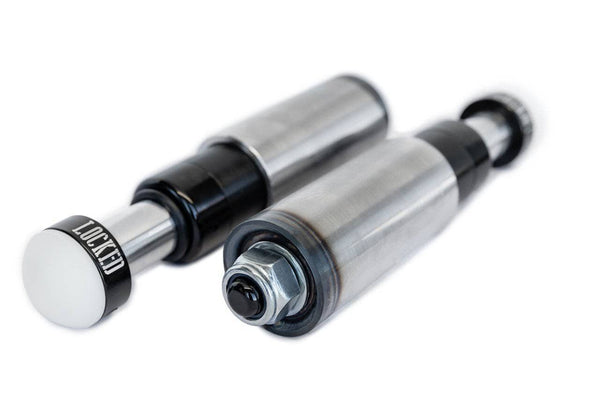

2.0" Bump Stop Kit | Pin

Regular price $460.00

Unit price per

Travel

PAIR OF 2.0 BUMP STOPS with 2" and 4" travel options

  • Hydraulic bump stops
  • Fully re-buildable
  • Adjustable oil volume and nitrogen pressure
  • Includes mounting sleeves

TECHNICAL SPECS:

  • 2.0” diameter body
  • 2" stroke has an extended length of 11.75" and a collapsed length of 9.75"
  • 4" stroke has an extended length of 15.5" and a collapsed length of 11.5"
  • Large 1.26” diameter shafts are hard-chromed, preventing rusting and essentially creating a self-cleaning system.
  • Shafts are polished to a mirror-like finish, ensuring extended seal life.
  • Shraeder cap mounts directly to the body of the bump stop, not the valve, creating a stronger seal, keeping everything clean and dry by keeping out dirt and moisture.
  • O-ring on shaft gauges your travel
  • Delrin contact pad is mounted with a single flushmount design, protecting your suspension and insuring quiet operation, with no metal on metal contact.

MOUNTING SLEEVES:

  • Heavy-duty mounting sleeves, come ready to weld.
  • Can OD is 2.44"
  • Pin-style cans hold the bump stop around the entire diameter, providing 360° coverage without any pinching like traditional pinch-style cans
  • Sleeves built to allow room for shrinkage during the welding process
  • Indexing holes are laser cut and keep bump stop securely in place within the can

Our Bump stops are designed to handle anything you can throw at them. They are built out of some of the highest quality materials to ensure a long shock life and reduce environmental wear.

We use Viton seals, 4130 Chromed polished shafts, Black Zinc coated steel shock bodies, 6061 Machined Aluminum coated in a deep black anodizing.

We stand behind our product 100% and offer a one year warranty on non wearable parts and a 6 month warranty on wearable parts.

Intended for off-highway use.
