Stage 4 Suspension System – 2005–2023 Toyota Tacoma (2-3” Lift) Coilovers Locked Offroad Shocks
Sale price $4,145.08 Regular price $4,908.98
Save 16%

Shipping calculated at checkout

Locked Offroad Stage 4 Suspension System – 2005–2023 Toyota Tacoma (2–3″ Lift)

Includes 2.5″ Remote-Reservoir Coilovers with Compression Adjusters, Dirt King Upper Control Arms, 12″ Smooth Body Rear Shocks, DRT Shock Relocation Kit, and ICON RXT Leaf Packs

OVERVIEW

Stage 4 builds on the Stage 3 system with an upgrade to 12″ smooth-body rear shocks and a DRT Fabrication shock-relocation kit that unlocks over 13 inches of usable travel.
It’s engineered for drivers who push their Tacoma harder on trails and high-speed terrain and want the cooling, articulation, and damping control of a larger-volume damper—without stepping into a full long-travel setup.

BUILT TO PERFORM

  • Locked Offroad 2.5″ Remote-Reservoir Coilovers & Shocks – Oversized bodies increase oil capacity, cooling, and damping control.

  • 22-Position Compression Adjusters – Fine-tune firmness for pavement, washboard, or whoops.

  • 12″ Smooth-Body Rear Shocks – Deliver extended travel and fade-free performance with Viton seals and 4130 chromed shafts.

  • DRT Fabrication Shock Relocation Kit – Relocates rear shock mounts for 13+ inches of travel; constructed from 3/16″ and ¼″ steel with limit-strap tabs and Grade 8 hardware.

  • Dirt King Chromoly Upper Control Arms – Restore geometry and add 1″ of down travel using Moog ball joints and Pro 2 Series bushings.

  • ICON RXT Multi-Rate Leaf Packs – Three adjustable spring-rate settings for factory-weight to heavy overland builds.

  • Premium Materials – 6061 anodized aluminum components, black zinc-coated bodies, and Viton/Buna seals for maximum durability.

  • Fully Rebuildable & Serviceable – Designed for long-term use and future upgrades.

INSTALLATION

  • Front components: 100 percent bolt-on fitment for 2005–2023 Tacoma (2WD or 4WD).

  • Rear shock relocation kit: welding required for mount installation and reinforcement plates.

  • Minor trimming may be needed for 33″ tires depending on offset and width.

  • Compatible with long-travel leaf packs and aftermarket bumpers.

  • Limit straps and bump stops required to maintain warranty coverage.

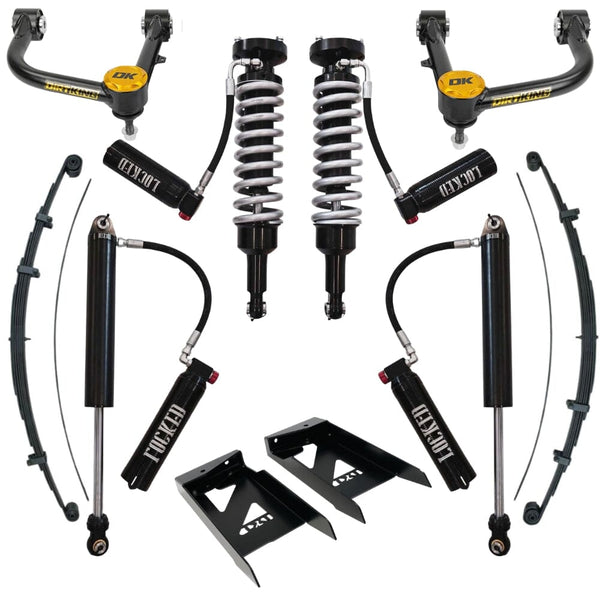

INCLUDES

  • (2) Locked Offroad 2.5″ Remote-Reservoir Front Coilovers with 22-Position Compression Adjusters (pre-assembled with HyperCo springs)

  • (2) Locked Offroad 2.5″ Smooth-Body Rear Shocks (12″ stroke, remote reservoir with adjusters)

  • (2) Dirt King Chromoly Upper Control Arms with Probearing Pro 2 Series Bushings and Moog Ball Joints

  • (1 Pair) ICON RXT Multi-Rate Leaf Packs (3-stage adjustable spring rate design)

  • (1) DRT Fabrication Rear Shock Relocation Kit with limit-strap tabs and Grade 8 hardware

  • All mounting hardware and installation instructions

SPRING RATE OPTIONS

  • 600 lb/in – Factory weight or light mods

  • 650 lb/in – Front bumper or winch

  • 700 lb/in – Full front armor setup (bumper, winch, skids, sliders)

RECOMMENDED USE

Stage 4 is for Tacoma owners who want the travel, control, and damping capability of a high-performance suspension without a complete long-travel conversion. It delivers the cooling and adjustability needed for extended off-road trips and rough terrain while maintaining excellent on-road manners.

WARRANTY

2-Year Warranty on Locked Offroad components with proper installation and use of limit straps and bump stops.
DRT Fabrication, Dirt King, and ICON manufacturer warranties apply per their terms.
