Ball Joint Upper Control Arms [DK-811991]

Regular price $649.99

Unit price per

The Dirt King ball joint upper control arms are engineered to improve suspension geometry, enabling additional front lift when paired with Dirt King shocks. Lifting a vehicle with stock upper control arms compromises both the geometry and structural strength due to excessive articulation at the factory joints. The Dirt King arms address these issues with improved caster settings for enhanced handling and re-engineered pivot angles for increased articulation. The inner pivots feature Probearing Pro 2 Series bushings, offering the ideal combination of a free-spinning inner sleeve, typical of poly bushings, with the maintenance-free and greaseless advantages of OE elastomer bushings. Additionally, the standard ball joints have been upgraded to heavy-duty Moog ball joints ensuring superior durability. All components of these upper control arms are rebuildable or replaceable, promoting long-term durability and ease of maintenance. These arms arrive preassembled with detailed instructions for a straightforward installation.

  • Wheel Travel: Additional 1” of travel compared to stock
  • Amount of Lift: Allows for 0-3” of lift
  • Track Width: Stock
  • Maximum Tire Size: 33”
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 16”
  • Coil over Shock Size:Factory or OEM replacement coilovers

Wheel Travel / Lift

The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 1” of down travel compared to the stock upper control arms.  Do not install these upper control arms with coil spacers that over articulate the suspension.

Tire Info

The upper control arms will allow for 33” tires but the front section of the cab mount may need to be cut to avoid tire rubbing while turning. In addition the front bumper may require trimming for proper tire clearance.

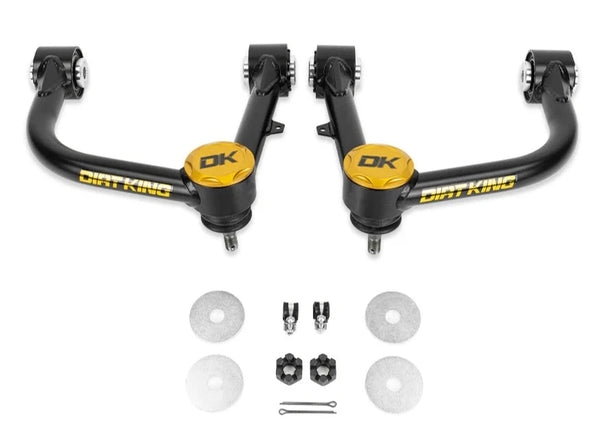

INCLUDED:

    • Chromoly upper control arms
    • Probearing Pro 2 Series bushings
    • Moog ball joints
    • Ball joint caps
    • Dirt King sticker pack
    • Installation instructions

 COMPATABILITY:

2005-Current Toyota Tacoma 2WD / 4WD
2005-2015 Toyota Hilux Vigo 2WD / 4WD
*Not compatible with 5 lug Tacoma’s
